Advantages

Significant increase in energy efficiency
At low ambient temperatures, free cooling mode is activated, transforming existing equipment into an energy efficient and cost effective system.

Installation variability

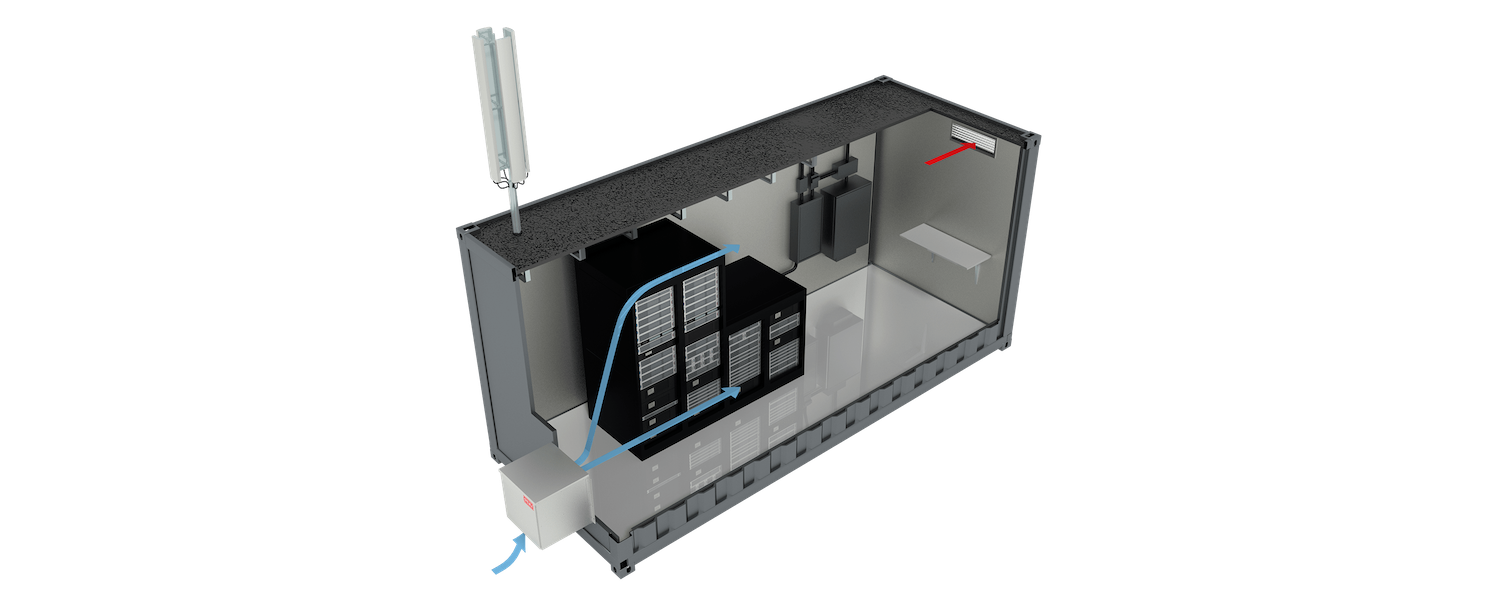

The FCL-IN model is installed indoors, providing protection against adverse weather conditions and vandalism.

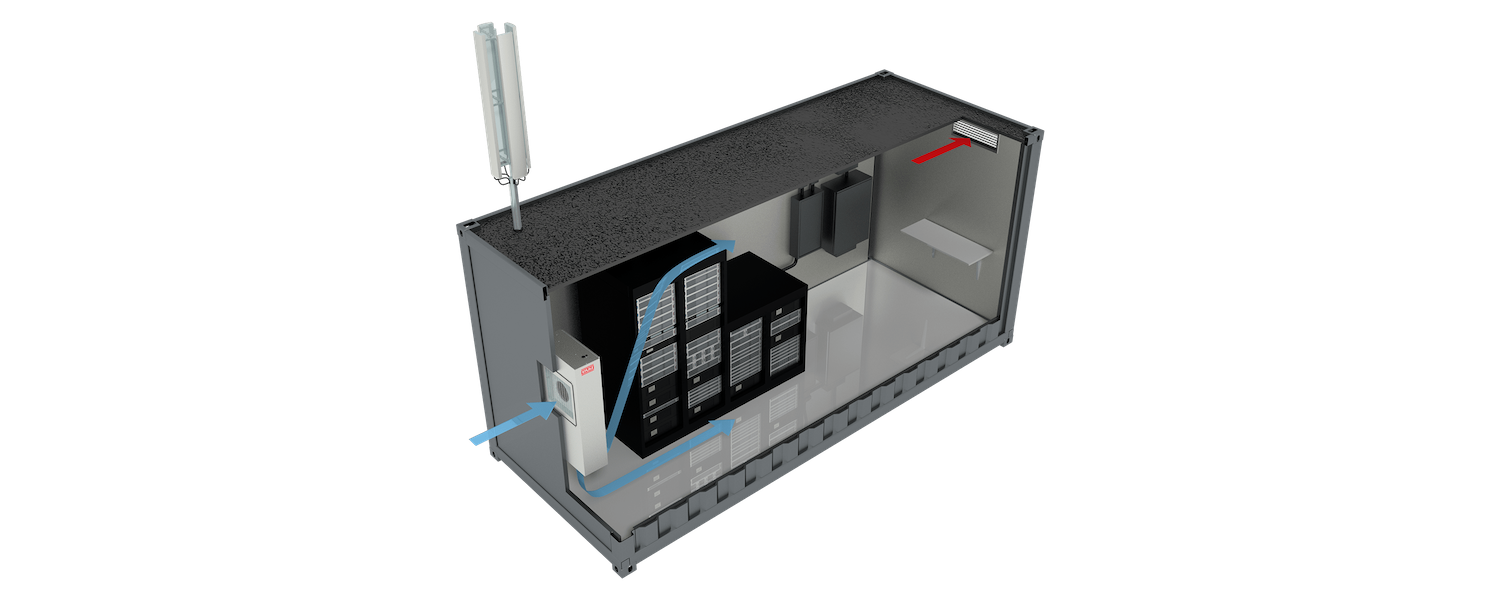

The FCL model is installed outside the container, completely freeing up the internal space.

Plug-and-play design
The equipment is easy to mount and configures automatically, so it can be installed and connected immediately on the day of delivery.

Microprocessor C102
Provides monitoring and control of the ShelterAir device and up to two units of the main air conditioner. Measures ShelterAir's energy consumption and records the operating hours of the air conditioner, also provides back-up ventilation in case of a power outage or malfunction.

Options

• Aluminum or stainless steel housing
• Humidity sensor
• Atmospheric overpressure switch
• Operating console with LCD display
• WIB-1000 interface

Specifications

• Easy integration with existing household air conditioners
• The ability to set the outside temperature for free cooling independently
• EC fan with speed control
• Front access for all service works
• G4 air filter with large filter area to reduce pressure drop and reduce maintenance frequency
• Powder coated galvanized steel insulated housing
• Clogged filter alarm
