Advantages

Adaptable installation

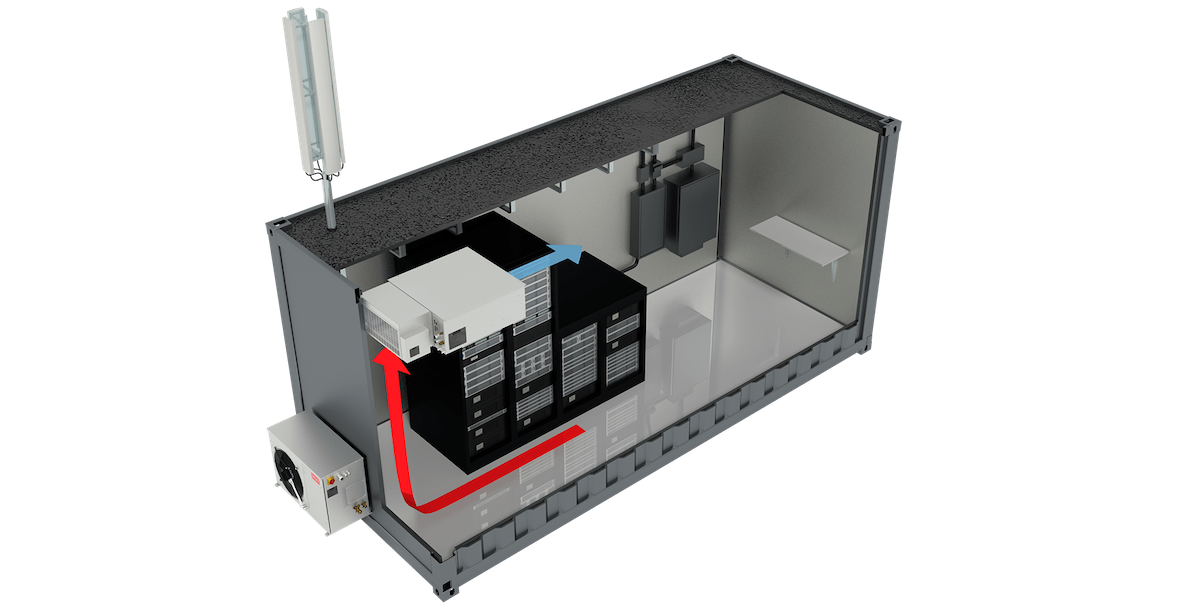

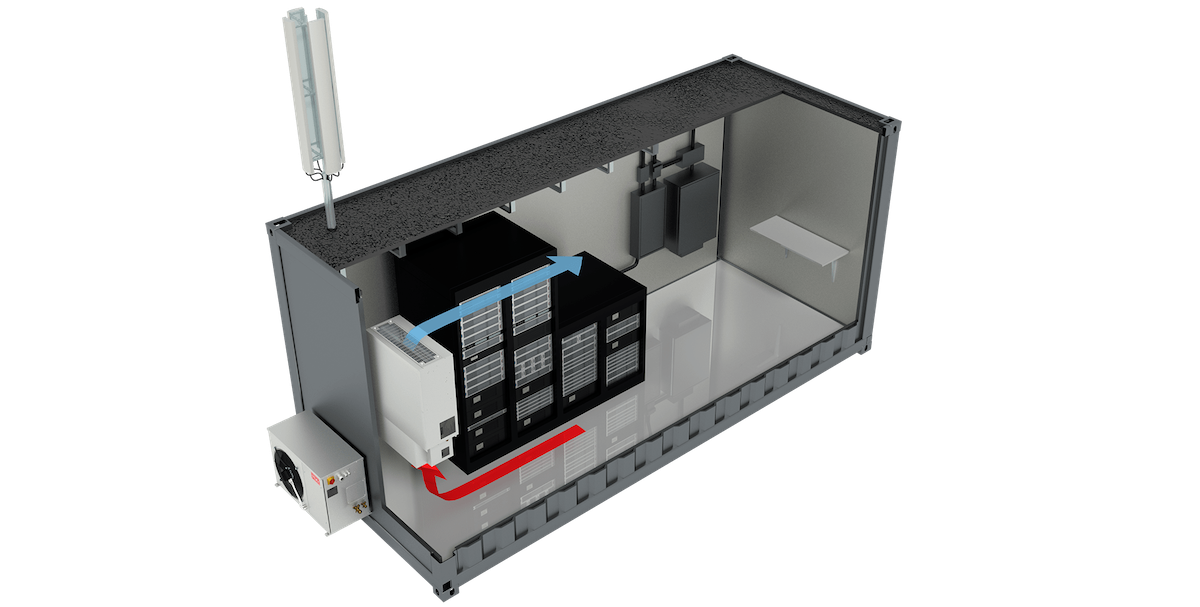

Split-Air 3 consists of an evaporator and a condenser unit. The indoor unit can be installed on the ceiling or on the wall, with the ability to supply air through the front panel or from the bottom.

Reduced operating costs
Free cooling and mixed cooling modes reduce costs by 84%.

Plug-and-play design
The equipment is automatically configured, supplied with refrigerant filled and ready to use immediately after installation.

Low noise level
Suitable for installation inside residential areas.

Two compressor versions
The SAL model is equipped with a constant speed compressor.
The SIL model has a variable speed EC compressor that provides fast response to changing heat loads, constant supply air temperatures and maximum energy efficiency in partial load mode.

Precise microprocessor C2020
Consists of a controller that monitors all functions of the Tel-Air-2 unit and an operator terminal. LCD displays key operating parameters and warnings.

Monitoring and alerting
Alarms of high or low priority can be assigned and transmitted via BMS or GSM modem.

Options

• High temperature operation up to 55 ° C with R134a refrigerant
• Compressor soft start mode
• Electric air heater
• Heat exchanger with anti-corrosion coating
• Mounting kit for outdoor unit
• Air intake and outlet grilles
• Air duct for indoor unit
• WIB1000 interface

Specifications

• Outdoor operating temperatures from -25 to +50 ° C
• Condensing pressure control
• Refrigerant R407C
• Air filter G4
• Filter control
• Automatic restart after power failure
• Night mode for quiet operation and energy saving
• Ease of installation and maintenance
• Easy setup and software of laptop blocks update
• Possibility to combine up to 10 units in one air conditioning system
