CyberHandler 2 — is a complete solution designed specifically for air conditioning in data centers. It includes not only equipment with a cooling capacity from 30 to 520 kW, but also a wide range of additional options:

life cycle costing software,
water purification by reverse osmosis,
commissioning,
maintenance.

Advantages

With its highly efficient Free Cooling design with indirect free and evaporative cooling, combined with innovative components, CyberHandler 2 reduces compressor usage time. This minimizes energy consumption and operating costs.
11 models with flexible configuration and a wide range of options allow to adapt the system to the specifics of a definite project.
CyberHandler 2 provides high reliability of equipment that is critical for the data center. The combination of components is designed to create optimal operating conditions for data centers. Each model is equipped with a regulator specifically designed to control high reliability systems.

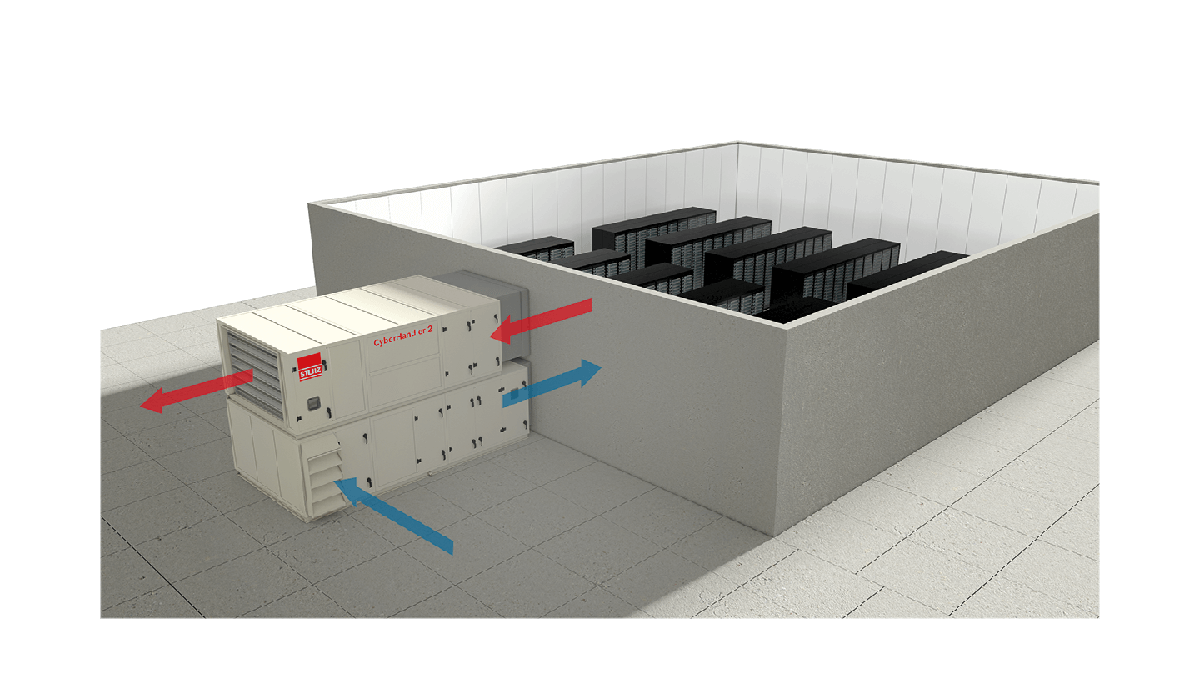

The container-type installation can be located next to the building, saving space.

Unique features

Three operating modes depending on the ambient temperature

Cooling principle

Adiabatic process

Mechanical cooling

Dry mode

Only natural

-

Wet mode

Adiabatic

+

-

ntensive cooling mode

Mixed

+

Technologies

Indirect free cooling: no contamination from outside air
Ability to use indirect free cooling year-round
Maximum energy efficiency — pPUE coefficient ranging from 1.02 to 1.10
Reverse osmosis provides hygienic safety. Removes 99% of unwanted aqueous impurities and 100% of legionella

Service

Simplified installation: quick installation of power cables and pipes
Serviceability: service engineers do not need to enter server rooms
Low cost of ownership: 6-8% reduction in capital costs (due to reduced electrical infrastructure) and operating costs
Fast payback

Four basic configurations with additional options for different operating conditions

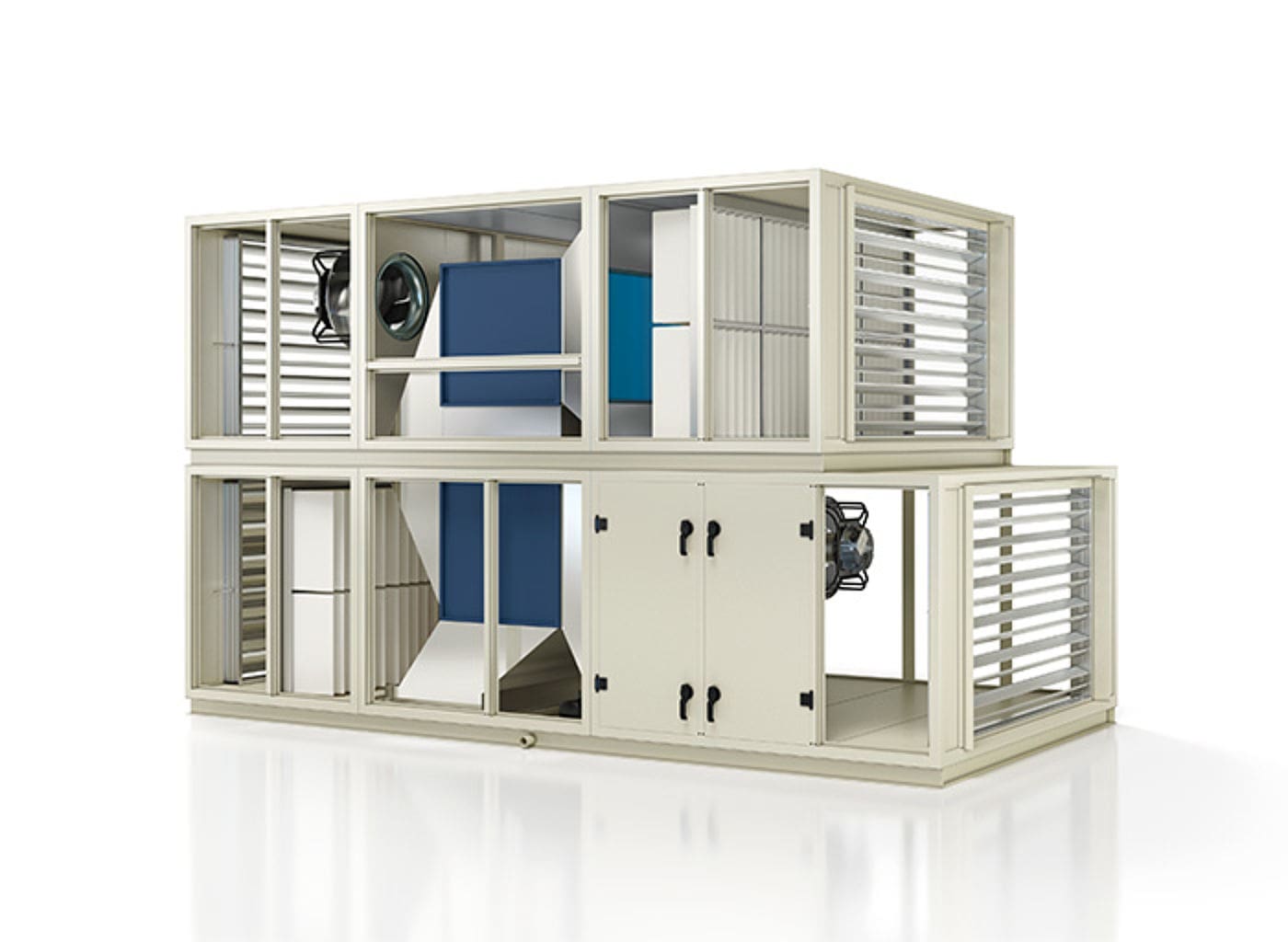

Indirect evaporative free cooling

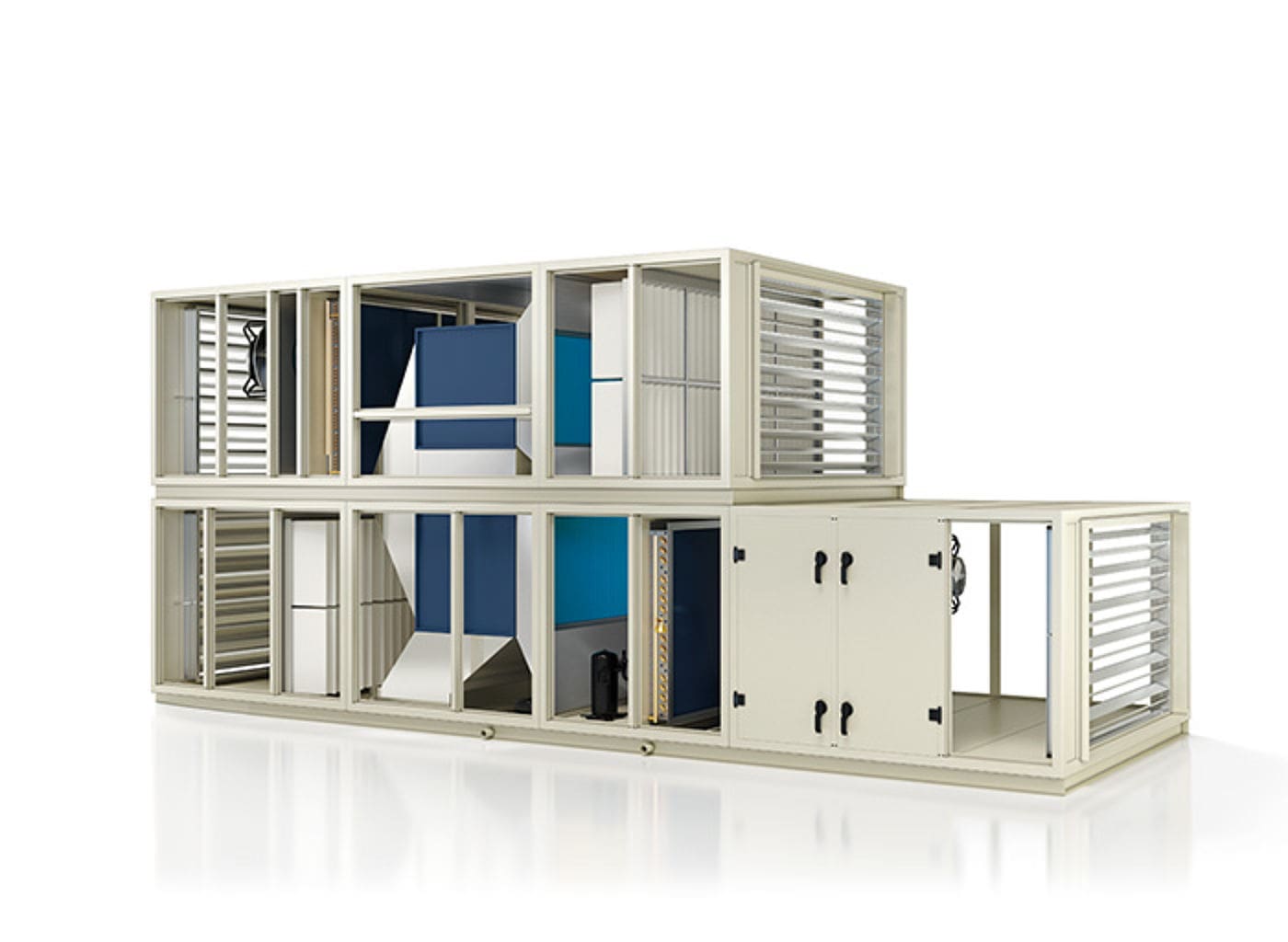

Indirect evaporative free cooling with integrated compressor system

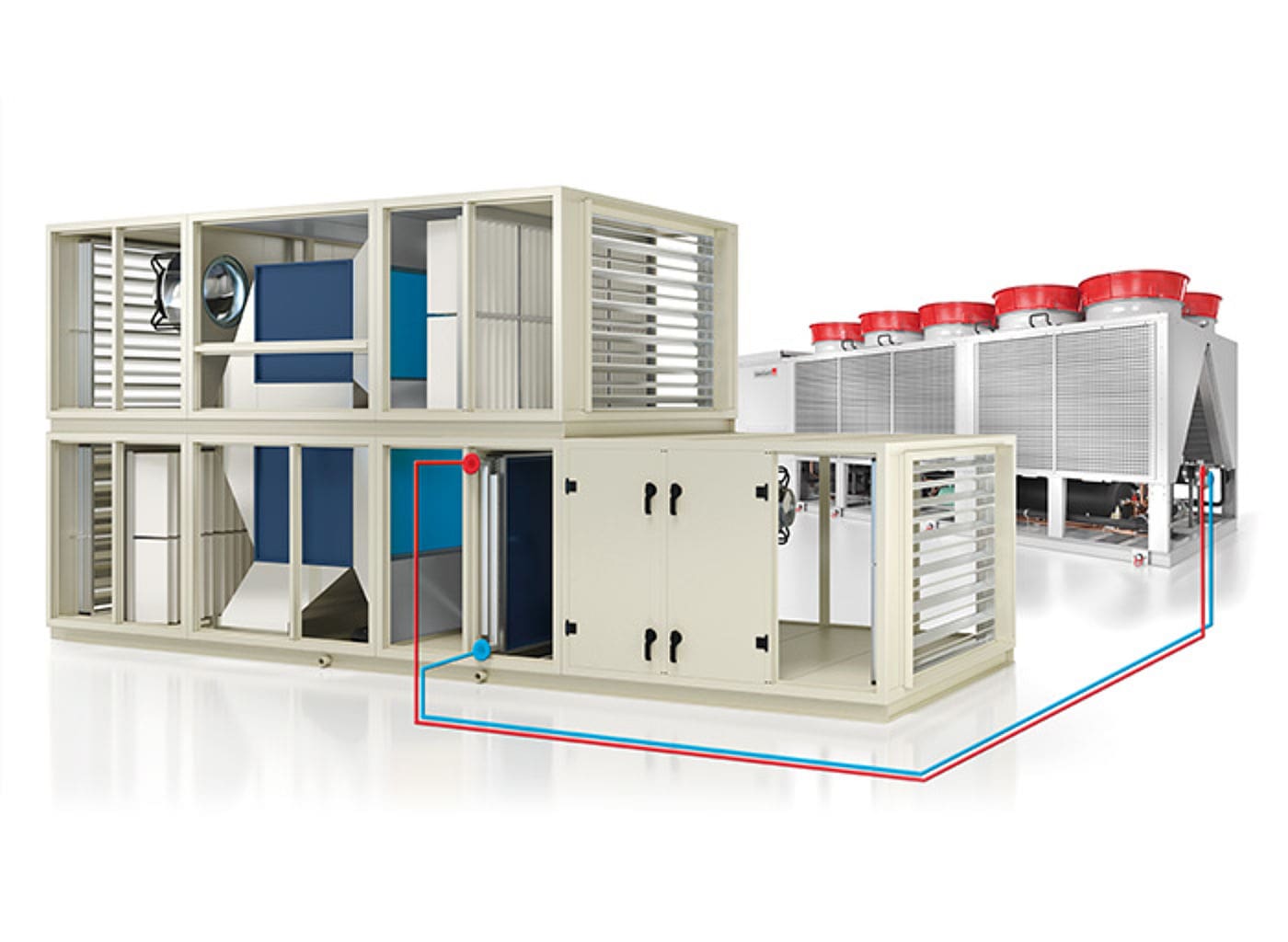

Indirect evaporative free cooling with external water cooler

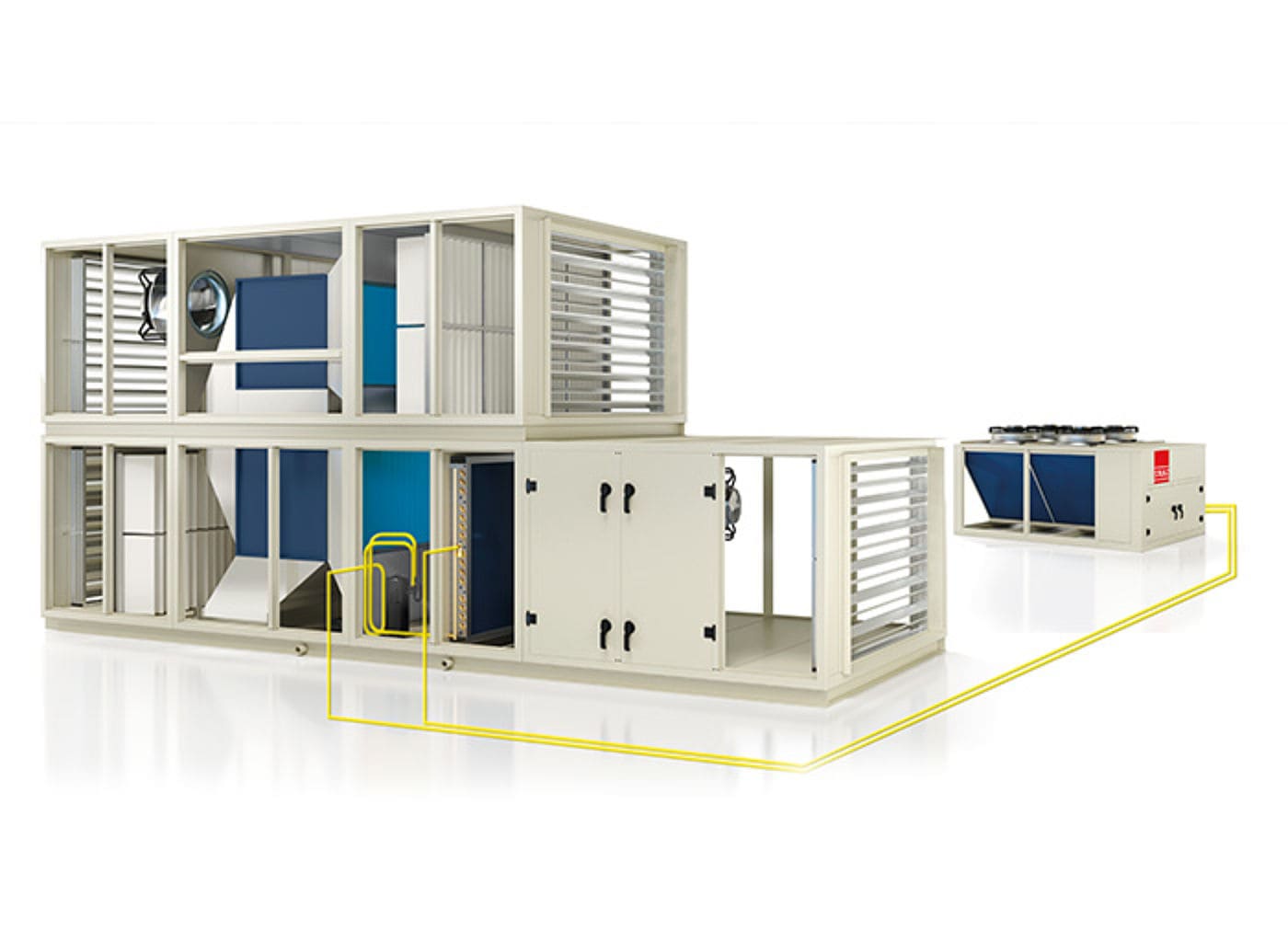

Indirect evaporative free cooling with external compressor system

The largest dimensions in the line.

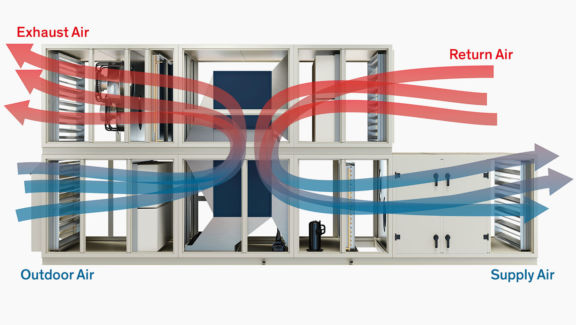

Air-to-air heat exchanger: the warm air of the data center is cooled by the ambient air, without mixing flows.
Adiabatic cooling using nozzles that spray water onto the heat exchanger. Precools the air and prolongs the free cooling period.
In temperate and warm climate, the system fully covers the required cooling capacity without compressor cooling.

Equipped with a compressor cooling system in hot climate.
All additional components are integrated into the housing.
30% of the required cooling capacity is provided mechanically

The adiabatic cooling system is complemented by a water cooler for additional cooling capacity.
The water chiller can fully cover the cooling needs of the facility.

An external compressor unit is connected to the system, which can fully cover the demand for cooling capacity.

Specifications

11 standardized sizes
Minimum pressure loss
The STULZ C7000 controller is specially designed for precise control of all functions in critical systems
Backlit LCD for visual presentation of information
The WIB 8000 “all-in-one” interface is user-friendly, allows easy communication and continuous monitoring
Multiple filter classes: G4, M5, F7 and F9
Flexible modular installation
CyberHandler 2 Select — powerful software for optimal hardware selection
